ArcBox mounting brackets for photovoltaic systems
Universal compatibility for photovoltaic systems.
The ArcBox Mounting Brackets range allows for the quick and secure installation of ArcBox housings in any type of photovoltaic system – on flat, pitched or roof-integrated (BIPV) roofs. Manufactured by Viridian Solar (UK) , the brackets offer dedicated mounting solutions for aluminium rails, wooden beams or special solar mounting profiles.
✔ Main advantages
- Safe and quick assembly – each bracket is designed for simple installation, with 8-10 mm T-Bolt fixing or direct fastening to wooden beams.
- Extensive compatibility – suitable for the most widely used photovoltaic mounting systems (K2 Systems, Schletter, Sunfixings, Van der Valk, Esdec, Renusol FS Pro / FS10, etc.).
- Optimized design – offers 2-3 possible positions for ArcBox orientation, for perfect adaptation to the DC cable routing.
- Durable material – high-strength anodized aluminum for a long life in outdoor environments.
- Compatible with ArcBox V1.4 – the version certified by KIWA, ZAG and Loughborough University for arc flash protection over 5 minutes without fire propagation.
✔ Available models
🔹 ARC_M01 – Universal rail support
The ARC_M01 bracket is fixed to standard photovoltaic rails using an 8 mm or 10 mm T-Bolt . The bracket can be rotated before tightening, to perfectly align the ArcBox with the cable route. Compatible with systems such as Schletter FixGrid, K2 Dome Fix, Van der Valk ValkPro, Sunfixings and others.

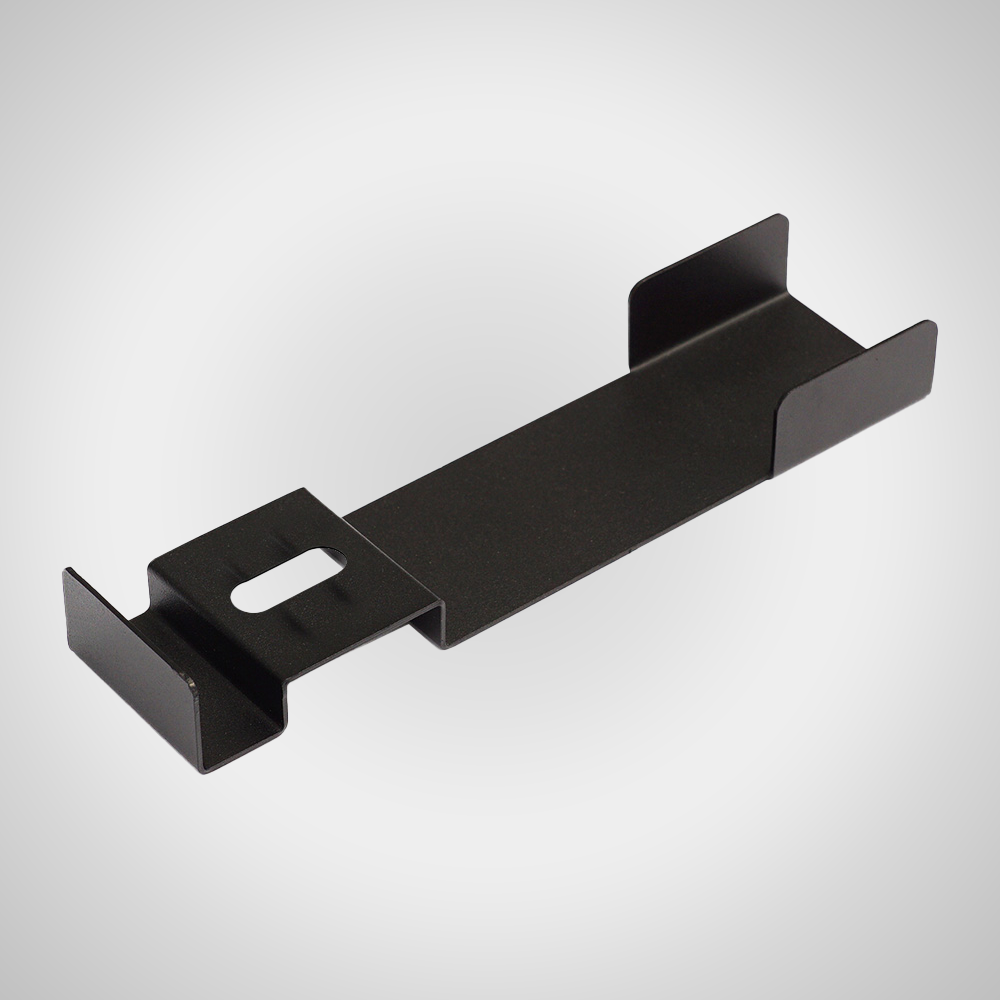

🔹 ARC_M02 – Support for wide rails (up to 40 mm)

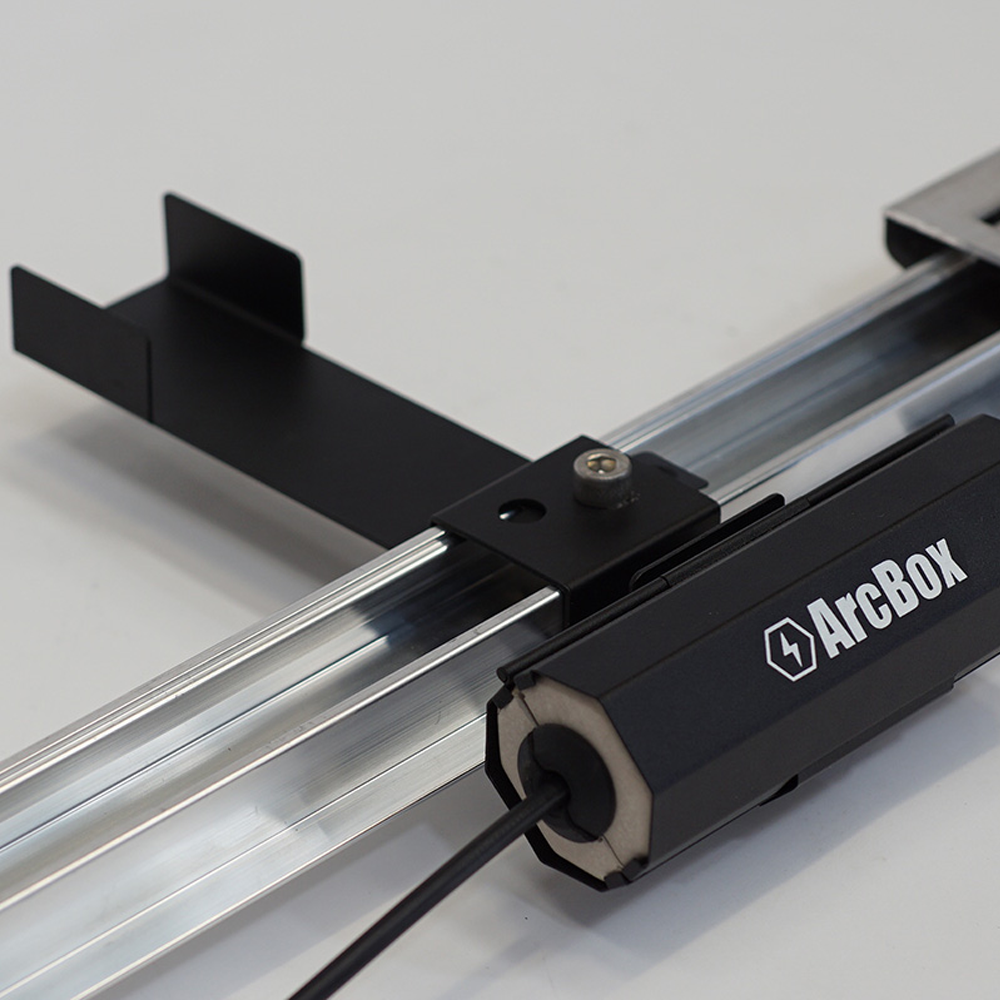

The ARC_M02 model is ideal for profiles up to 40 mm wide, offering three attachment points for different orientations of the ArcBox. Recommended for modules mounted parallel to the roof, to K2 Dome Fix, ValkPro, Sunfixings, etc.

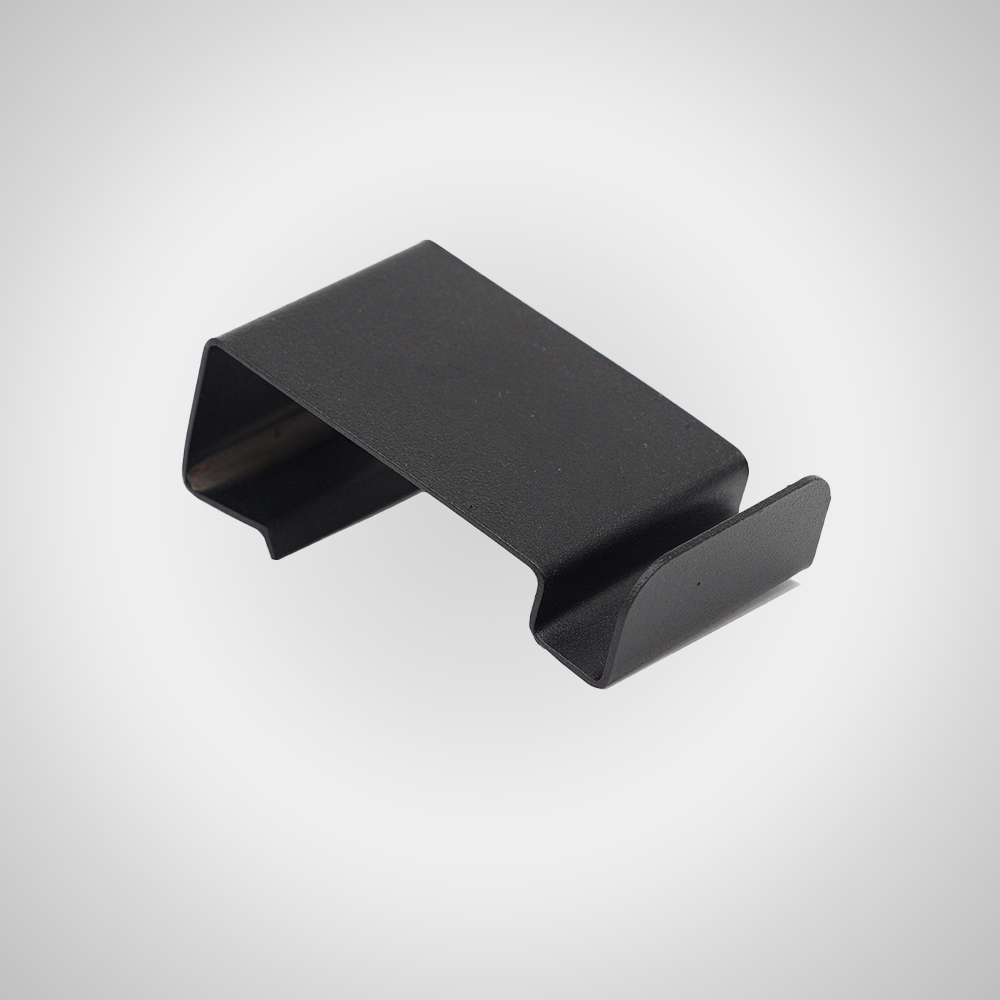

🔹 ARC_BM25 and ARC_BM30 – Batten roof mounts

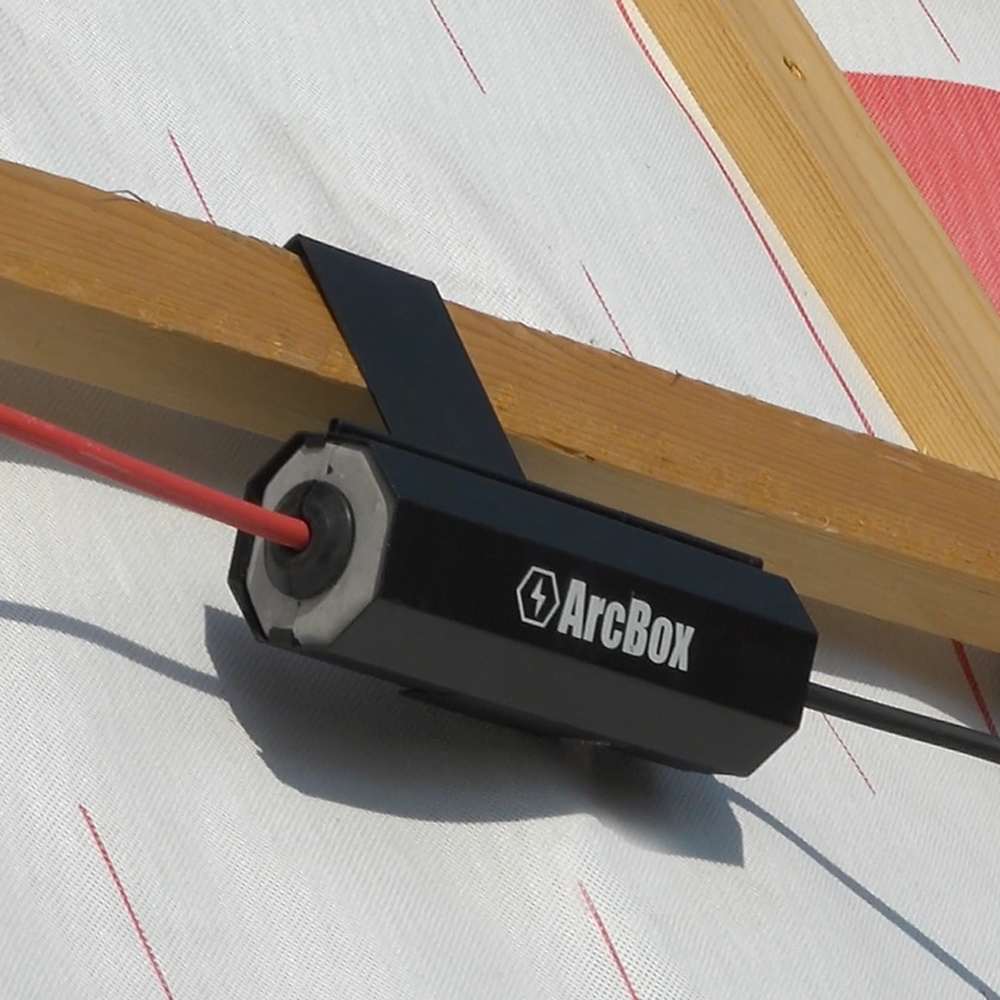

The ARC_BM25 and ARC_BM30 models are designed for roof - integrated PV systems, fixing directly to wooden beams. The bracket hooks over the 22–25 mm (BM25) or 30 mm (BM30) beam and positions the ArcBox behind the solar panels, in the dedicated mounting space.
✔ Comparison table
| Exemplary | Mounting type | Compatibility | fixation | Applications |
|---|---|---|---|---|
| ARC_M01 | Standard rail | Schletter, K2, ValkPro, Sunfixings | T-Bolt 8/10 mm | Flat or pitched roof |
| ARC_M02 | Wide rail (up to 40 mm) | K2 Dome, ValkPro, Sunfixings | T-Bolt 8/10 mm | Installation parallel to the roof |
| ARC_BM25 | Beam 22–25 mm | BIPV / Roof-integrated PV | Hanging fixing | Mounting behind panels |
| ARC_BM30 | Beam 30 mm | BIPV / Roof-integrated PV | Hanging fixing | Mounting behind panels |
✔ Typical applications
- Flat, pitched or integrated roofs (BIPV)
- Commercial, industrial and residential photovoltaic installations
- DC cable runs exposed to combustible materials
- K2, Schletter, ValkPro+, Renusol FS Pro / FS10, Esdec FlatFix systems
✔ General data
| Material: | Anodized, corrosion-resistant aluminum |
| Working temperature: | –40 °C … +85 °C |
| Weight: | ≈ 410 g (ArcBox + stand) |
| Certifications: | KIWA / ZAG / Loughborough University tested |
| Compatibility: | ArcBox V1.4 and later |
✔ Other information
- Delivery from stock Romania – Distreo SRL
- Technical documentation and PDF data sheets available upon request
- Warranty: 24 months for legal entities
ArcBox Mounting Brackets – Viridian Solar's professional solution for safe, fast and compatible mounting in any photovoltaic system.
